Sensors & transducers with continuous output signal for hazardous areas & industry

  • Reliable measurement in sensitive and harsh environments
  • Safe for use in hazardous areas
  • Plug and play – time-saving, simple, and safe
Messumformer-EX-TR

Compact complete solutions from pi safety
for precise process data

Sensors and transducers with continuous output signals are essential for precise, analog measurement processing in industrial and hazardous applications. The product solutions from pi safety combine robust sensors and intelligently configurable transducers in a compact, certified system. Our devices are ATEX and IECEx compliant and temperature resistant from -40°C to +70°C. They can be easily integrated into existing control systems (e.g., PLC or DCS) and ensure reliable signal transmission for pressure, temperature, humidity, or volume flow measurements.

Sensors and transducers with continuous output
signal for applications in potentially explosive areas (Ex zones)

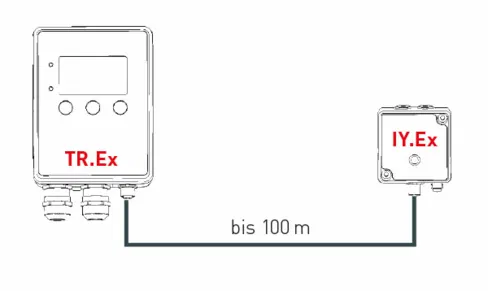

TR.Ex Transducer, explosion protected

Product specifications

Specification:

  • II2(1)G Ex eb mb ib [ia Ga] IIC T4 Gb
    II2(1)D Ex tb ib [ia Da] IIIC T130°C Db
  • Universal Transducer for mounting in zone 1 / 2 / 21 / 22
  • Ambient temperature -40…+70°C
  • IP66
  • Temperature class T4 for all gases and dusts
  • Adjustable on site; display
  • Stainless steel / polymer compound material for maximum corrosion resistance
  • Feedback: 0...10 V oder 4...20 mA
  • No further barrier required in the control cabinet
  • LED status indication
  • Smart installation
  • 24 VAC / DC
  • For use with IY.Ex-Sensors

IY.Ex Sensors

Specification:

  • II 1/2G Ex ia IIC T6/T5/T4 Ga/Gb
    II 2D Ex ia IIIC T75°C-T145°C Db
  • Intelligent sensor concept for connection (M12 connector) to TR.Ex universal Ex-transducer
  • Stainless steel / polymer compound material for maximum corrosion resistance
  • Fast sampling rate up to 125 ms for pressure sensors
  • Room sensor for direct connection
  • For measuring in zone 0, 1, 2, 21, 22
  • Other sensors with M12 sensor cable (1 meter included, other lengths available)
  • For use with TR.Ex Transducer

8 advantages of pi safety sensors and transducers with continuous output signal for ATEX zones

Globally certified safety

ATEX, IECEx for zones 1, 2, 21, 22. Measurement acquisition up to zone 0

Precise analog signals

4–20 mA or 0–10 V for precise and interference-free measurement transmission

Robust Ex design

Stainless steel and highly resistant polymer housing (SSPC) – IP66 protection class

Easy integration

Directly connectable – compatible with all common control systems

Low maintenance & durable

Ideal for 24/7 use in extreme environmental conditions

Compact & space-saving

Optimal for confined installation locations in Ex control cabinets or machines

Made in Germany

High-quality manufacturing & many years of experience in explosion protection

Short delivery times

Our products are available worldwide at short notice

Areas of application for Ex areas (ATEX zones):

Chemical & petrochemical plants

Pressure and temperature monitoring in safety-relevant processes

Pharmaceutical industry

Clean room sensor technology for monitoring process parameters under Ex conditions

Oil & gas production (onshore/offshore)

Monitoring of pipeline pressure, temperature or humidity

Paint, varnish, and solvent processing

Explosion-proof measurement transmission in sensitive mixing areas

Energy & power plant technology

Volume flow and temperature measurement for combustible media

Food industry with hazardous areas

Measurement in zones with dust or alcohol vapor-containing atmospheres

Sensors and transducers with
continuous output signal for industrial applications

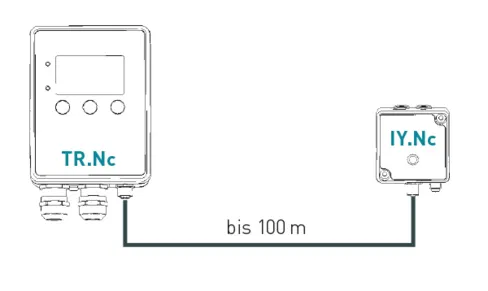

TR.Nc Transducer

  • Universal Transducer
  • Ambient temperature -40…+70°C
  • IP66
  • Adjustable on site, display
  • Highest corrosion resistance
  • Feedback: 0...10 V oder 4...20 mA
  • LED status indication
  • Smart installation
  • 24 VAC / DC
  • For use with IY.NC-Sensors
  • Integrated junction box

IY.Nc Sensors

  • Intelligent sensor concept for connection (M12 connector) to TR.Nc universal switching relay
  • Highest corrosion resistance
  • Fast sampling rate up to 125 ms for pressure sensors
  • Room sensor for direct connection
  • Other sensors with M12 sensor cable (1 meter included, other lengths available)
  • For use with TR.Nc transducer
  • TR.Nc

Advantages of pi safety sensors and transducers for industrial applications

Precise analog signals

Reliable 4–20 mA or 0–10 V outputs for stable process values

Fast integration

Compatible with PLC, DDC, SCADA, and other control systems

Compact design

Space-saving for machines, systems, or control cabinets

Robust and durable

IP66 protection class, resistant to dust, moisture, and vibrations

Ready for immediate use

Plug-and-play via M12 connector or terminal connection

Flexible parameterization

Customizable signal ranges and settings directly on site

Industrial standard “Made in Germany”

Quality that impresses in demanding production environments

Short delivery times

Our products are quickly available worldwide

Areas of application for industrial use

Machine and plant engineering

Real-time monitoring of pressure, temperature, humidity, or volume flow

Water & wastewater technology

Sensors for fill levels, media monitoring, and flow control

Building technology & HVAC systems

Integration for controlling heating, cooling, and ventilation systems

Food and packaging industry

Process control for temperature, pressure, or CO₂ levels

Renewable energies & environmental technology

Measurement data acquisition in solar, wind power, or biogas plants

FAQ about sensor technology and transducers with continuous output signals

What does “continuous output signal” mean and when is it used?

A continuous output signal, e.g. 4–20 mA or 0–10 V, provides a continuous, analog measured value. These signals are ideal for precise process monitoring, e.g., for pressure, temperature, or humidity—both in industry and in hazardous areas.

Are pi safety sensors, transducers, and switching amplifiers suitable for use in hazardous areas?

Yes – our models such as TR.Ex, SW.Ex and the associated sensors are certified according to ATEX / IECEx and can be used in zones 1, 2, 21 and 22. Measurement acquisition up to zone 0. They meet all requirements for safe operation in gas and dust atmospheres.

In which temperature ranges can the devices be used?

All sensors and transmitters are designed for temperatures from –40°C to +70°C – ideal for industrial environments and demanding outdoor areas.

What output signals are available?

As standard, our pi safety sensors and transducers deliver an analog signal of 4–20 mA or 0–10 V – suitable for all common control systems.

How is the electrical connection made?

The pi safety sensors and transducers with continuous output signal are equipped with M12 connectors and terminal connections. This enables quick, error-free integration into existing systems (plug-and-play).

What is the difference between a sensor and a transmitter?

A sensor measures a physical quantity (e.g., pressure), while a transmitter converts this signal into a standardized analog signal (e.g., 4–20 mA).

What protection class do the devices have?

All pi safety products have protection class IP66 – they are dustproof and protected against strong water jets.

Can the sensors be individually parameterized?

Yes – many models allow easy on-site parameterization without additional software. This allows measuring ranges or signal types to be flexibly adjusted.
